SW Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   30m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 2,000,000 Operations
Service life(electrical)
   Min. 10,000 Operations

RATING
5A/6A 125/250 VAC

APPLICATION
Drives for beds, tables and roller shutters
Servo drives
Power tools
Recreational equipment
Vacuum cleaners
Small household appliances
Vending machines
Medical devices
HVAC technology
Automotive applications

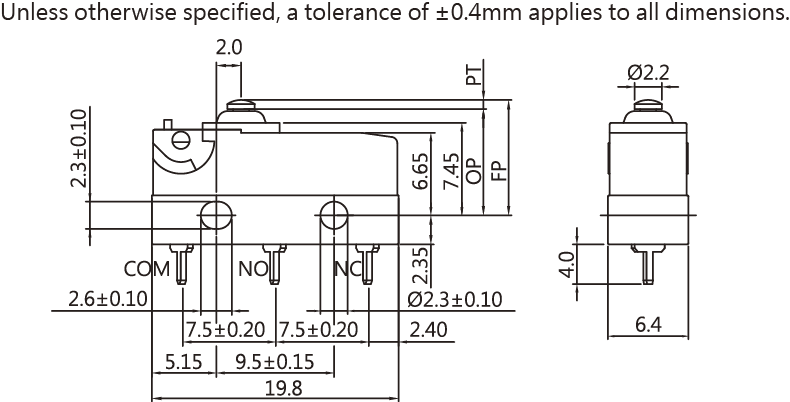

DIMENSIONS

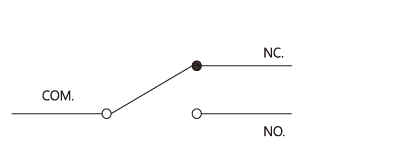

CONTACT CONFIGURATION

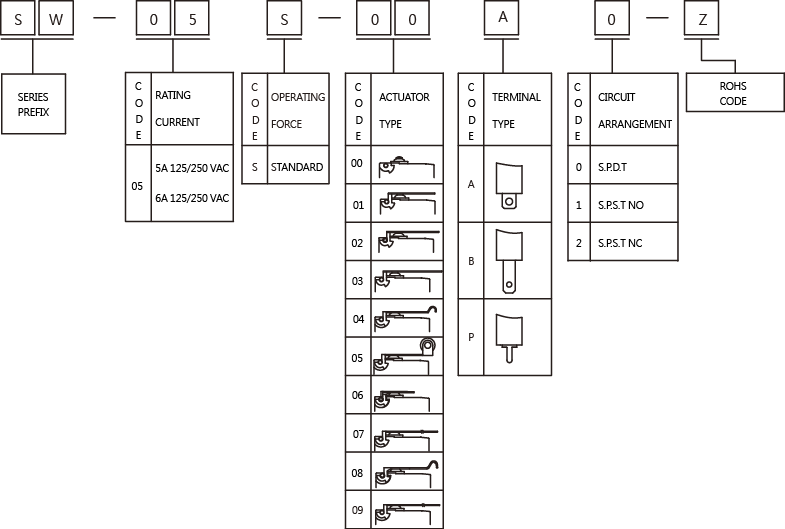

ORDER INFORMATION

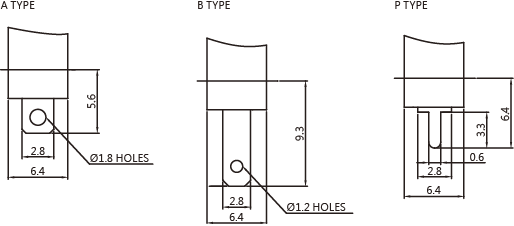

TERMINAL TYPES

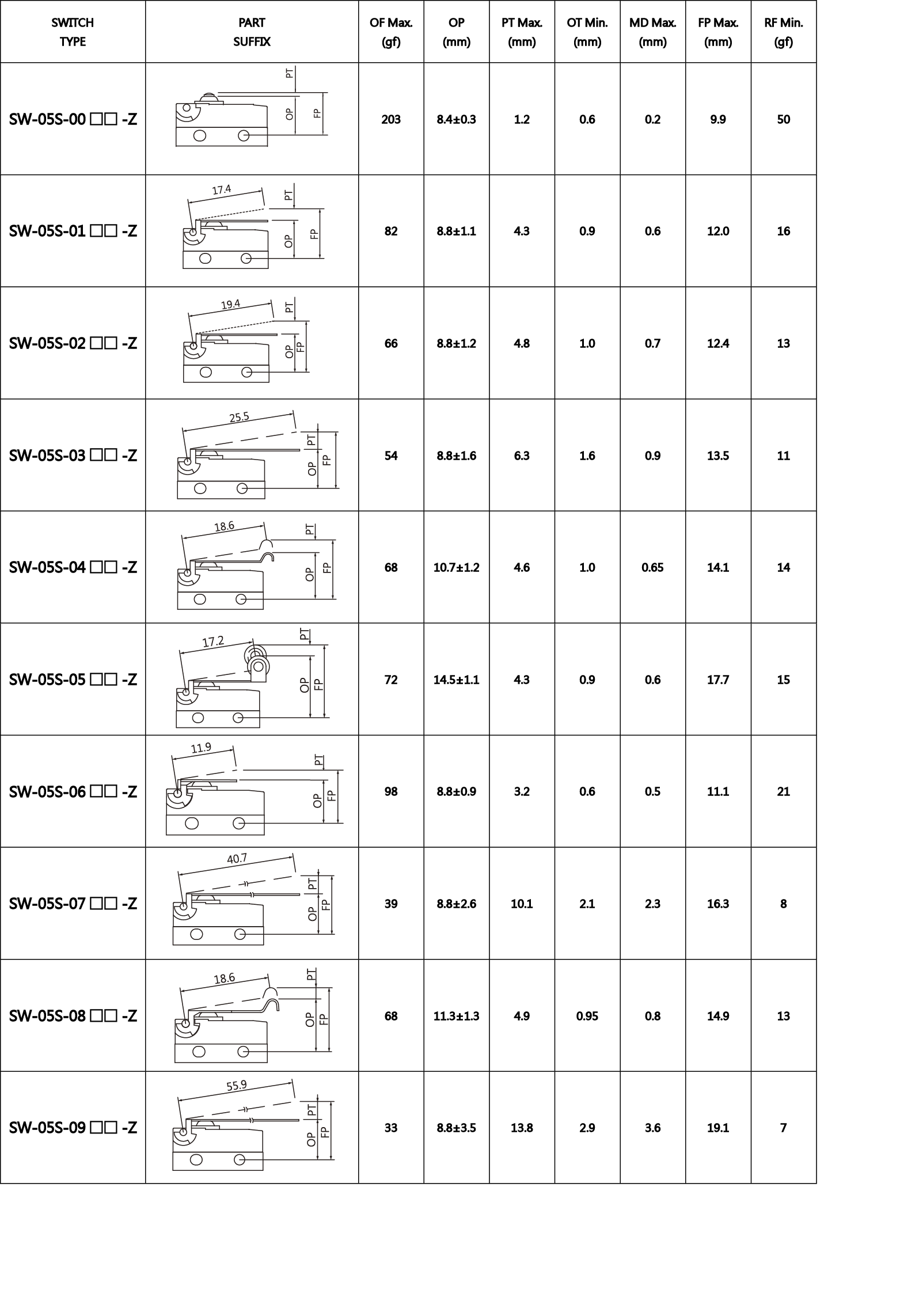

OPERATING CHARACTERISTICS

SW
