MDU-DFW

MDU-DFW

SPECIFICATIONS
Operating frequency(mechanical):
120 Operation / mim
Operating frequency(electrical):
10~30 Operation / mim
Contact resistance:
100m Ω(max)
Insulation resistance(at 500 VDC)
100M Ω(Min)
Service life(mechanical)
1,000,000 Operations
Service life(electrical)
10,000 Operations

RATING
0.1A/3A/5A 125/250VAC,3A 24VDC

APPLICATION
Automotive
Air conditioner
communication
Electric tooth brush
toys

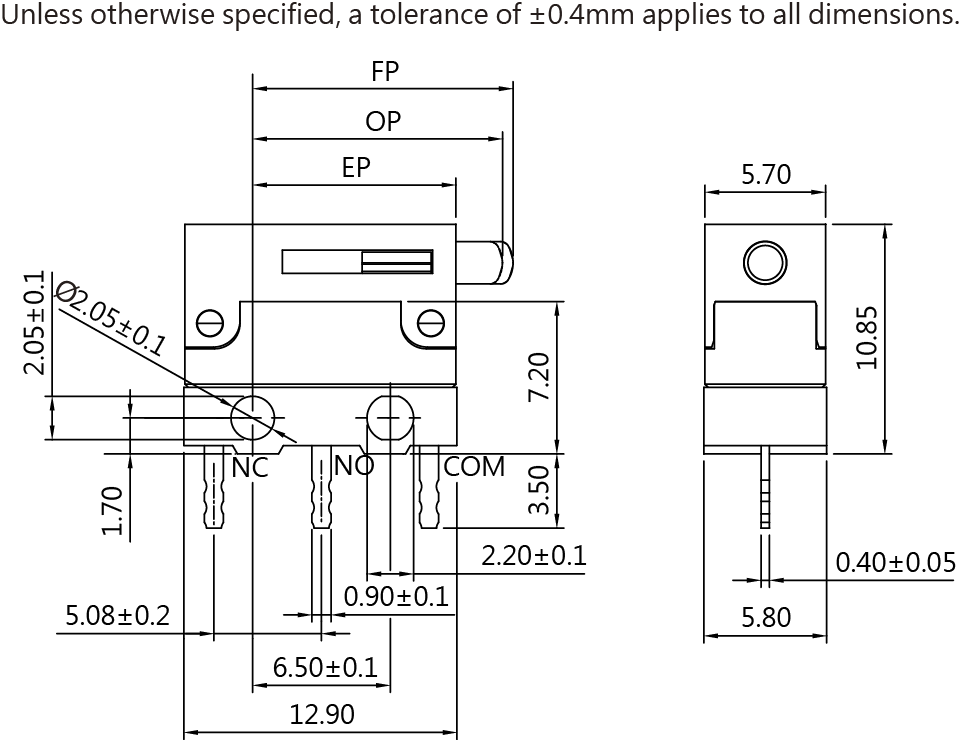

DIMENSIONS

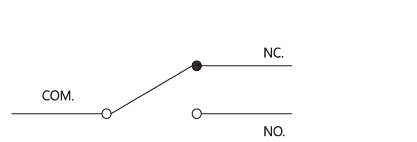

CONTACT CONFIGURATION

ORDER INFORMATION

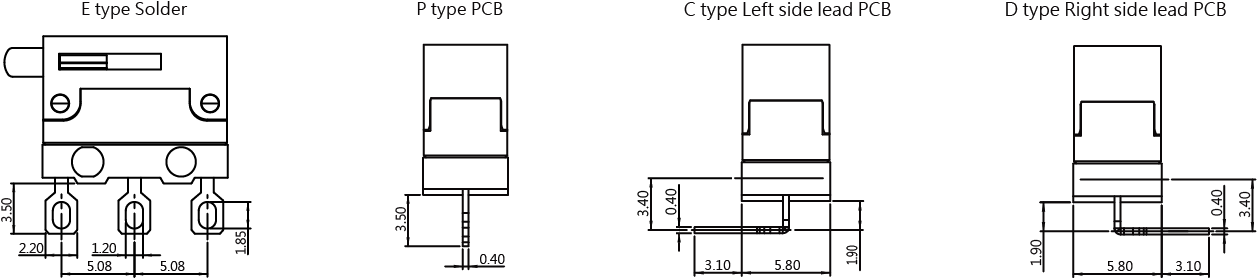

TERMINAL TYPES

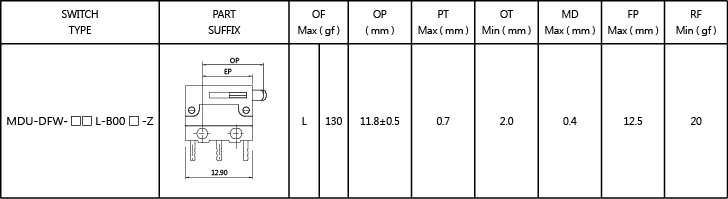

OPERATING CHARACTERISTICS

序号	型号	额定值	接点构成	操作部形状	安装方向	端子类型
1	MDU-DFW-P1G1L-B00C0E-Z	0.1A,125/250VAC	SPDT	柱塞	侧边	PCB-左侧THT
2	MDU-DFW-P1G1L-B00C1E-Z	0.1A,125/250VAC	SPST-NO	柱塞	侧边	PCB-左侧THT
3	MDU-DFW-P1G1L-B00C2E-Z	0.1A,125/250VAC	SPST-NC	柱塞	侧边	PCB-左侧THT
4	MDU-DFW-P1G1L-B00D0E-Z	0.1A,125/250VAC	SPDT	柱塞	侧边	PCB-右侧THT
5	MDU-DFW-P1G1L-B00D1E-Z	0.1A,125/250VAC	SPST-NO	柱塞	侧边	PCB-右侧THT
6	MDU-DFW-P1G1L-B00D2E-Z	0.1A,125/250VAC	SPST-NC	柱塞	侧边	PCB-右侧THT
7	MDU-DFW-P1G1L-B00E0E-Z	0.1A,125/250VAC	SPDT	柱塞	侧边	焊片
8	MDU-DFW-P1G1L-B00E1E-Z	0.1A,125/250VAC	SPST-NO	柱塞	侧边	焊片
9	MDU-DFW-P1G1L-B00E2E-Z	0.1A,125/250VAC	SPST-NC	柱塞	侧边	焊片
10	MDU-DFW-P1G1L-B00P0E-Z	0.1A,125/250VAC	SPDT	柱塞	侧边	PCB-THT
11	MDU-DFW-P1G1L-B00P1E-Z	0.1A,125/250VAC	SPST-NO	柱塞	侧边	PCB-THT
12	MDU-DFW-P1G1L-B00P2E-Z	0.1A,125/250VAC	SPST-NC	柱塞	侧边	PCB-THT
13	MDU-DFW-P3G3L-B00C0E-Z	3A,125/250VAC	SPDT	柱塞	侧边	PCB-左侧THT
14	MDU-DFW-P3G3L-B00C1E-Z	3A,125/250VAC	SPST-NO	柱塞	侧边	PCB-左侧THT
15	MDU-DFW-P3G3L-B00C2E-Z	3A,125/250VAC	SPST-NC	柱塞	侧边	PCB-左侧THT
16	MDU-DFW-P3G3L-B00D0E-Z	3A,125/250VAC	SPDT	柱塞	侧边	PCB-右侧THT
17	MDU-DFW-P3G3L-B00D1E-Z	3A,125/250VAC	SPST-NO	柱塞	侧边	PCB-右侧THT
18	MDU-DFW-P3G3L-B00D2E-Z	3A,125/250VAC	SPST-NC	柱塞	侧边	PCB-右侧THT
19	MDU-DFW-P3G3L-B00E0E-Z	3A,125/250VAC	SPDT	柱塞	侧边	焊片
20	MDU-DFW-P3G3L-B00E1E-Z	3A,125/250VAC	SPST-NO	柱塞	侧边	焊片
21	MDU-DFW-P3G3L-B00E2E-Z	3A,125/250VAC	SPST-NC	柱塞	侧边	焊片
22	MDU-DFW-P3G3L-B00P0E-Z	3A,125/250VAC	SPDT	柱塞	侧边	PCB-THT
23	MDU-DFW-P3G3L-B00P1E-Z	3A,125/250VAC	SPST-NO	柱塞	侧边	PCB-THT
24	MDU-DFW-P3G3L-B00P2E-Z	3A,125/250VAC	SPST-NC	柱塞	侧边	PCB-THT
25	MDU-DFW-05L-B00C0E-Z	5A,125/250VAC	SPDT	柱塞	侧边	PCB-左侧THT
26	MDU-DFW-05L-B00C1E-Z	5A,125/250VAC	SPST-NO	柱塞	侧边	PCB-左侧THT
27	MDU-DFW-05L-B00C2E-Z	5A,125/250VAC	SPST-NC	柱塞	侧边	PCB-左侧THT
28	MDU-DFW-05L-B00D0E-Z	5A,125/250VAC	SPDT	柱塞	侧边	PCB-右侧THT
29	MDU-DFW-05L-B00D1E-Z	5A,125/250VAC	SPST-NO	柱塞	侧边	PCB-右侧THT
30	MDU-DFW-05L-B00D2E-Z	5A,125/250VAC	SPST-NC	柱塞	侧边	PCB-右侧THT
31	MDU-DFW-05L-B00E0E-Z	5A,125/250VAC	SPDT	柱塞	侧边	焊片
32	MDU-DFW-05L-B00E1E-Z	5A,125/250VAC	SPST-NO	柱塞	侧边	焊片
33	MDU-DFW-05L-B00E2E-Z	5A,125/250VAC	SPST-NC	柱塞	侧边	焊片
34	MDU-DFW-05L-B00P0E-Z	5A,125/250VAC	SPDT	柱塞	侧边	PCB-THT
35	MDU-DFW-05L-B00P1E-Z	5A,125/250VAC	SPST-NO	柱塞	侧边	PCB-THT
36	MDU-DFW-05L-B00P2E-Z	5A,125/250VAC	SPST-NC	柱塞	侧边	PCB-THT

ZIPPY防水微动开关,ZIPPY基本开关,ZIPPY快动开关,ZIPPY快动作开关,ZIPPY快速微动开关,ZIPPY密封基本开关,ZIPPY密封开关,ZIPPY微动开关,ZIPPY限位开关,ZIPPY防水微动开关；

详情
