DW3(IP67)

DW3(IP67)

详情

<产品型号>

DW3(IP67) Series

SPECIFICATIONS
Operating frequency(electrical):
   Max.120 Operation / mim
Contact resistance:
   Max.1 Ω(max)
Service life(electrical)
   50mA/1mA-Min.500,000 Operations


RATING
0.1A 30VDC, 0.05A 16VDC, 0.001A 5VDC


APPLICATION
1. Automobiles(detection of door opening and closing and shift lever postion, etc.)
2. Household appliances(propane stoves,vacuum cleaners, air conditioners Washing machines, etc.)

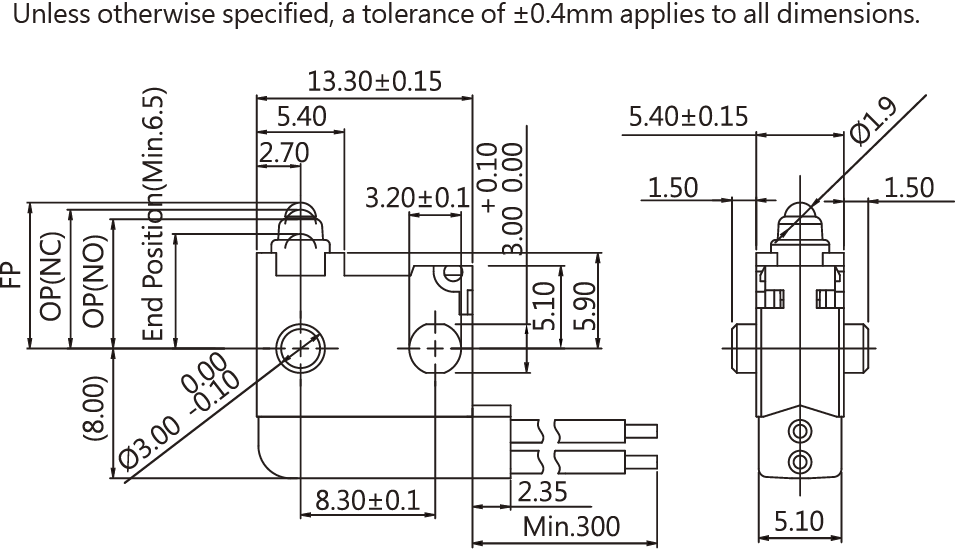

DIMENSIONS

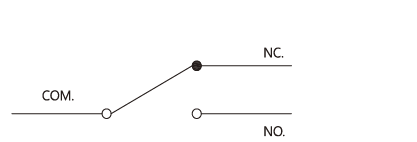

CONTACT CONFIGURATION

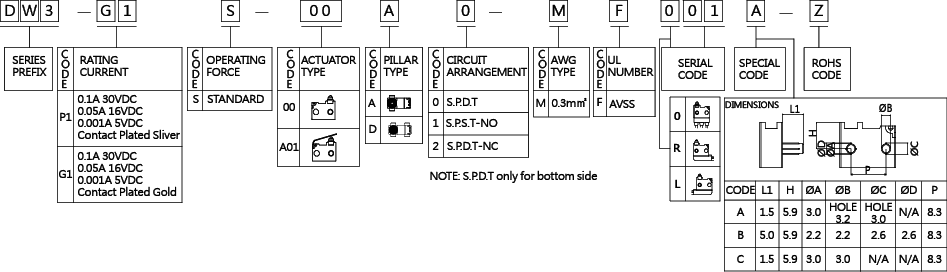

ORDER INFORMATION
