VA2

VA2 Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Dielectric strength(50 - 60 Hz)
   1500VAC RMS
Service life(mechanical)
   Min.1000000 Operations
Service life(electrical)
    Min.10000 Operations

RATING
0.1A/3A/6A/10A/16A/20A/26A 125/250VAC

APPLICATION
Vending machines
Copying machines
Water heaters
Gaming machines
Power tools
Reverse osmosis water purifier
Float switches
Reverse osmosis water purifier
Float switches
High pressure switches
Low pressure switches

DIMENSIONS

CONTACT CONFIGURATION

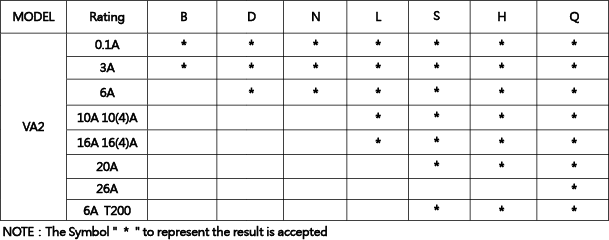

OPERATING FORCE

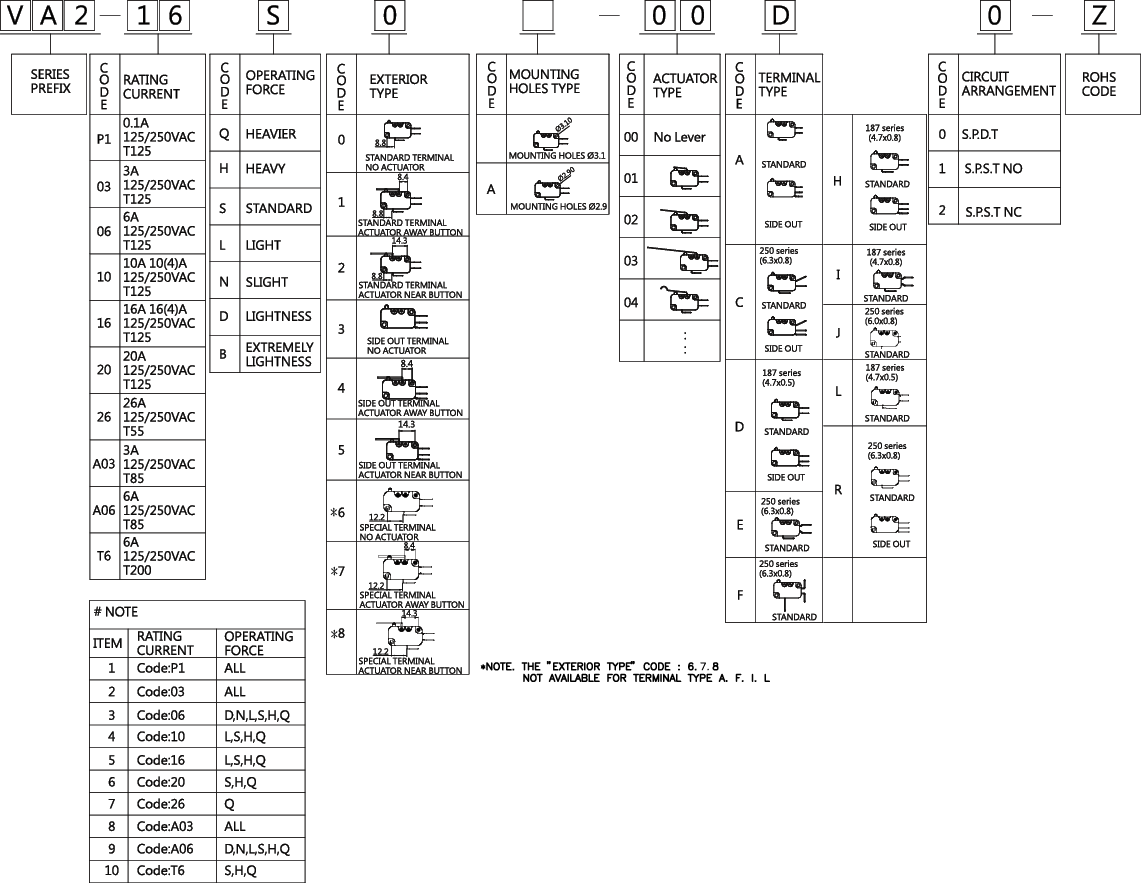

ORDER INFORMATION

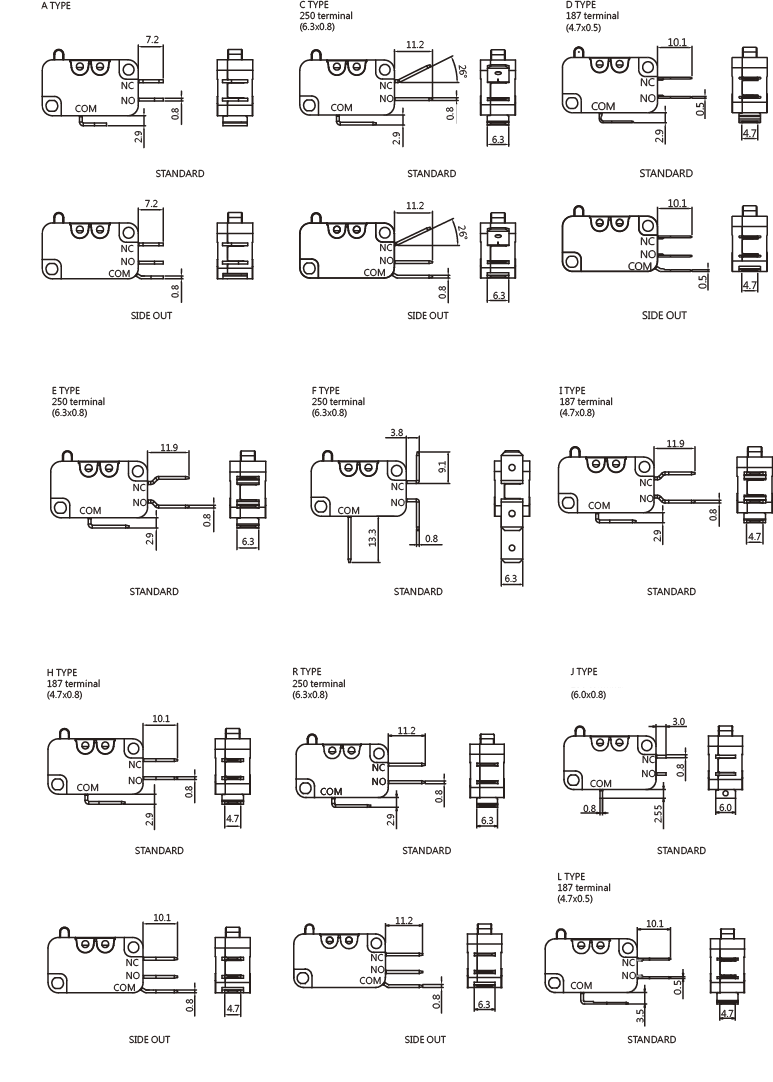

TERMINAL TYPES

OPERATING CHARACTERISTICS
