VA1

VA1 Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   300m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 10,000,000 Operations
Service life(electrical)
   3A~26A Min.10,000 Operations

RATING
0.1A/3A/6A/10A/16A/20A/26A 125/250VAC

APPLICATION
Vending machines
Copying machines
Water heaters
Gaming machines
Power tools

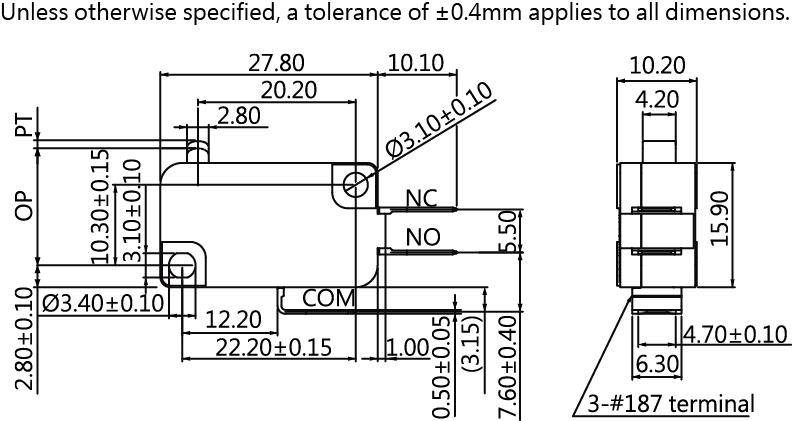

DIMENSIONS

CONTACT CONFIGURATION

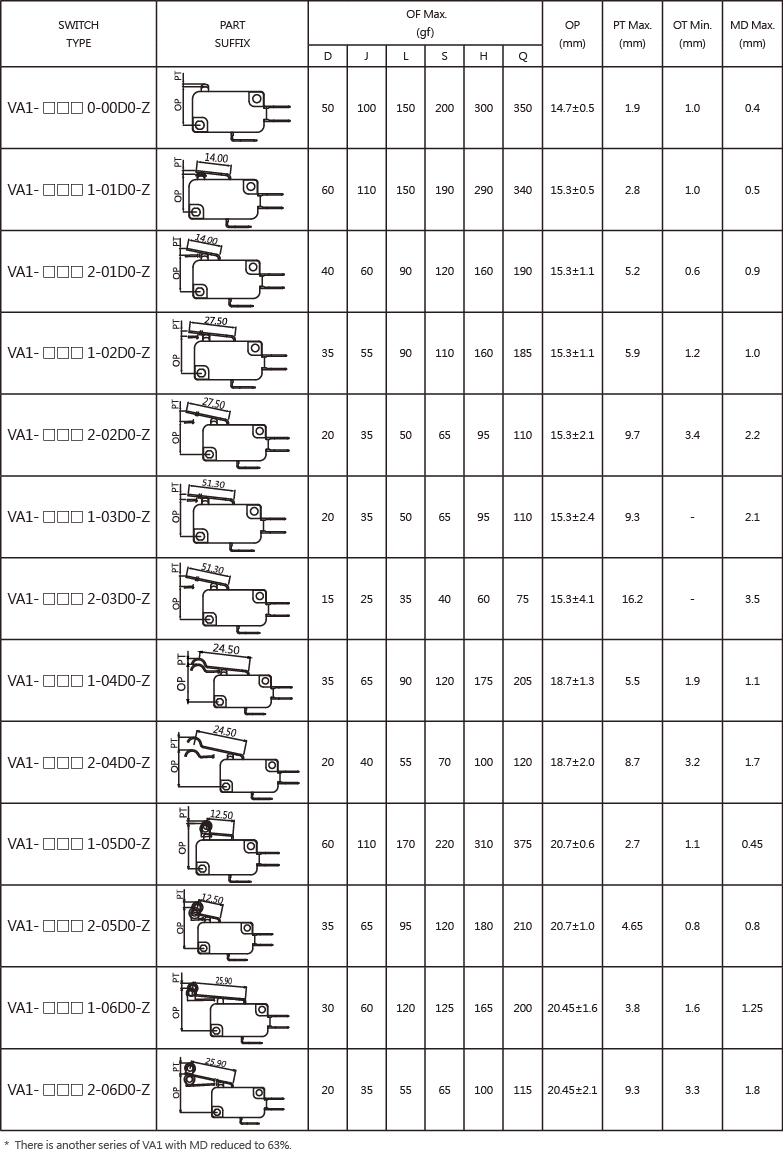

OPERATING FORCE

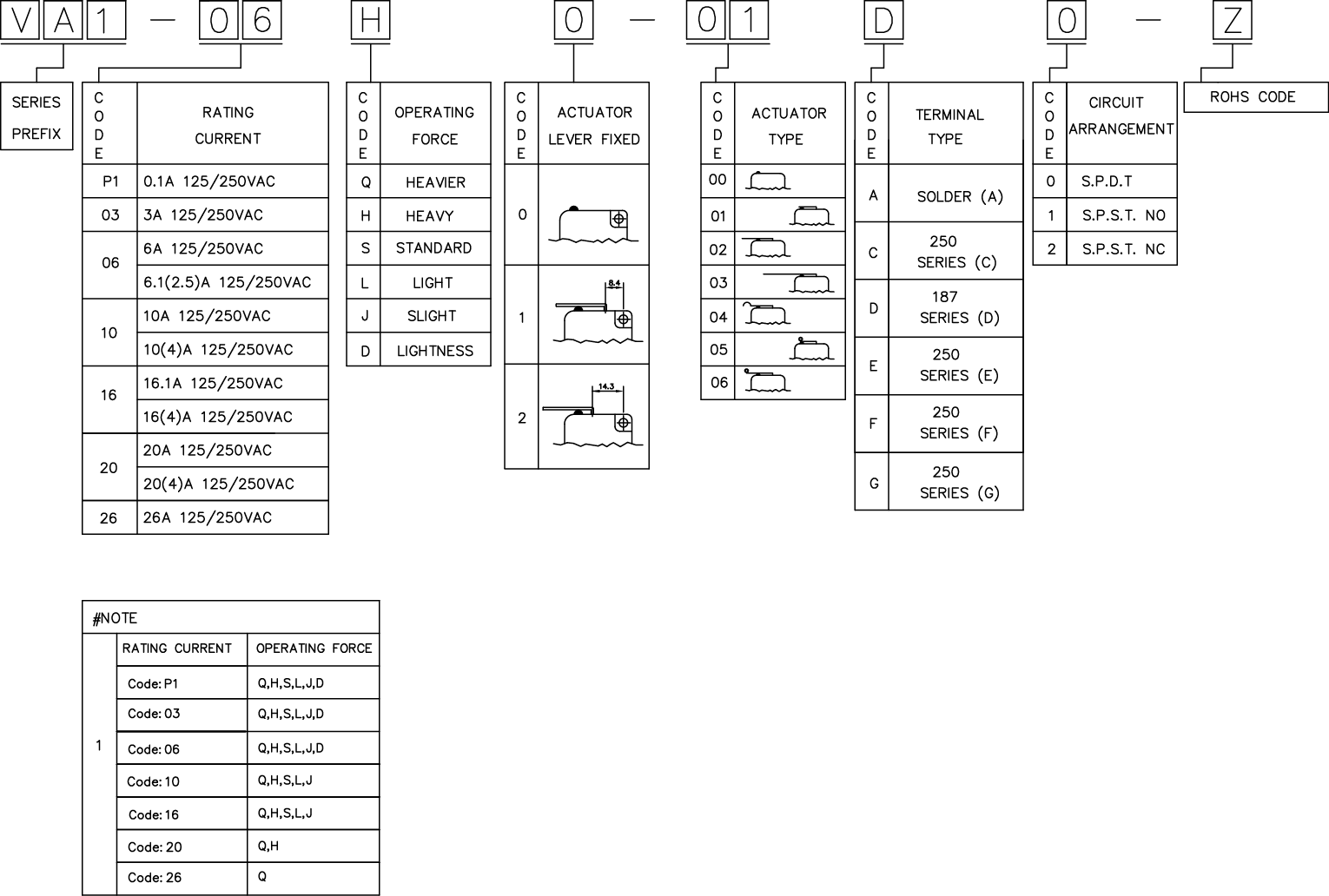

ORDER INFORMATION

TERMINAL TYPES

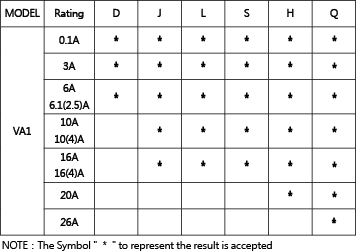

OPERATING CHARACTERISTICS
