V3 Series (Gap>3mm)

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   30m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 500,000 Operations
Service life(electrical)
   Min. 10,000 Operations

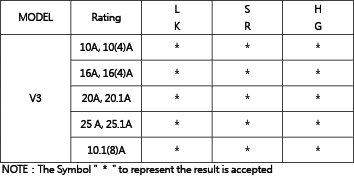

RATING
10A/16A/20A/25.1A 125/250VAC

APPLICATION
Vending machines
Copying machines
Water heaters
Gaming machines
Power tools

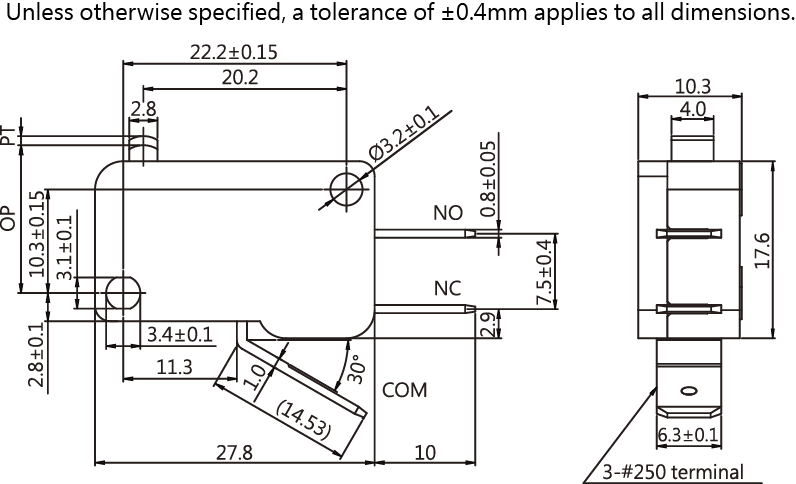

DIMENSIONS
