<产品型号>

DM Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min.1,000,000 Operations
Service life(electrical)
   3A-Min.10,000 Operations

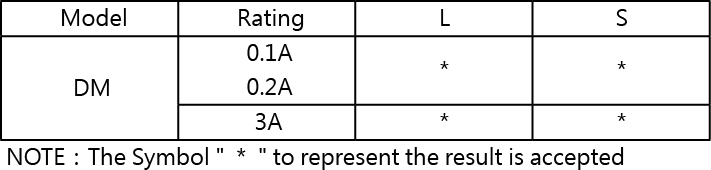

RATING
0.1A//3A 125VAC ; 0.1A 48 VDC ; 0.2A 60VDC

APPLICATION
1. Computer mouse
2. Joysticks
3. Charger unit for mobile phone
4. Detection of key position for automobiles
5. Small home appliances
6. Central heating control
7. Electronic Door Locks
8. Smart Meter
reminder,Cordless phone,Tester machine

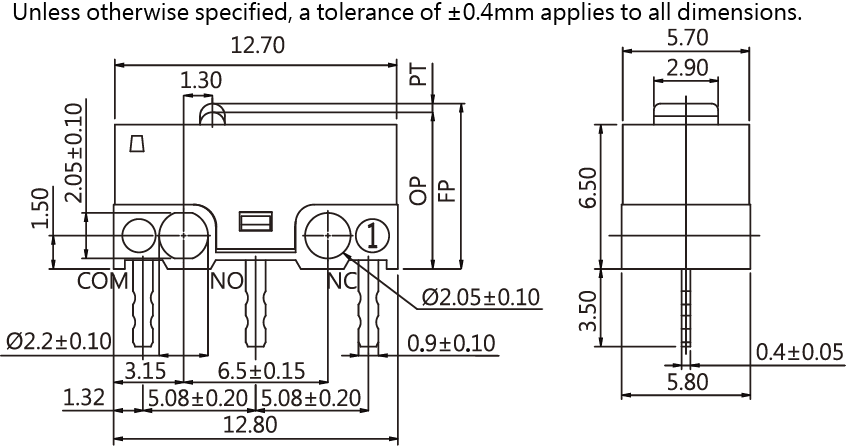

DIMENSIONS

CONTACT CONFIGURATION

OPERATING FORCE

ORDER INFORMATION

TERMINAL TYPES

OPERATING CHARACTERISTICS

DM
