DF Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1000000 Operations
Service life(electrical)
   1A/3A-Min.10,000 Operations

RATING
0.1A/1A/3A 125VAC ; 3A 5VDC/12VDC

APPLICATION
1. Computer mouse
2. Joysticks
3. Charger unit for mobile phone
4. Detection of key position for automobiles
5. Small home appliances
6. Central heating control
7. Electronic Door Locks
8. Smart Meter

DIMENSIONS

CONTACT CONFIGURATION

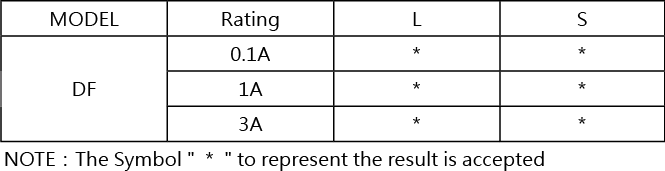

OPERATING FORCE

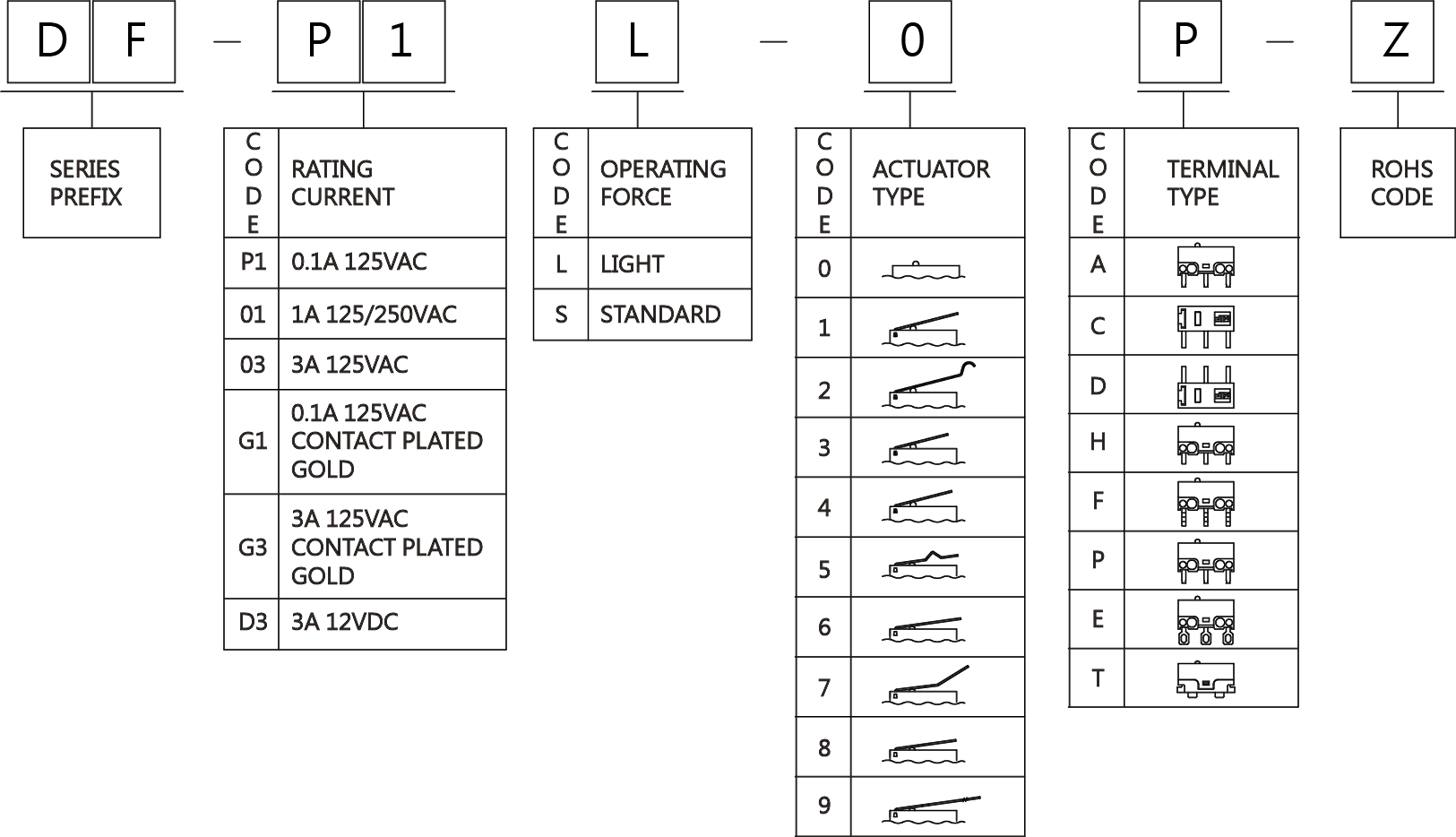

ORDER INFORMATION

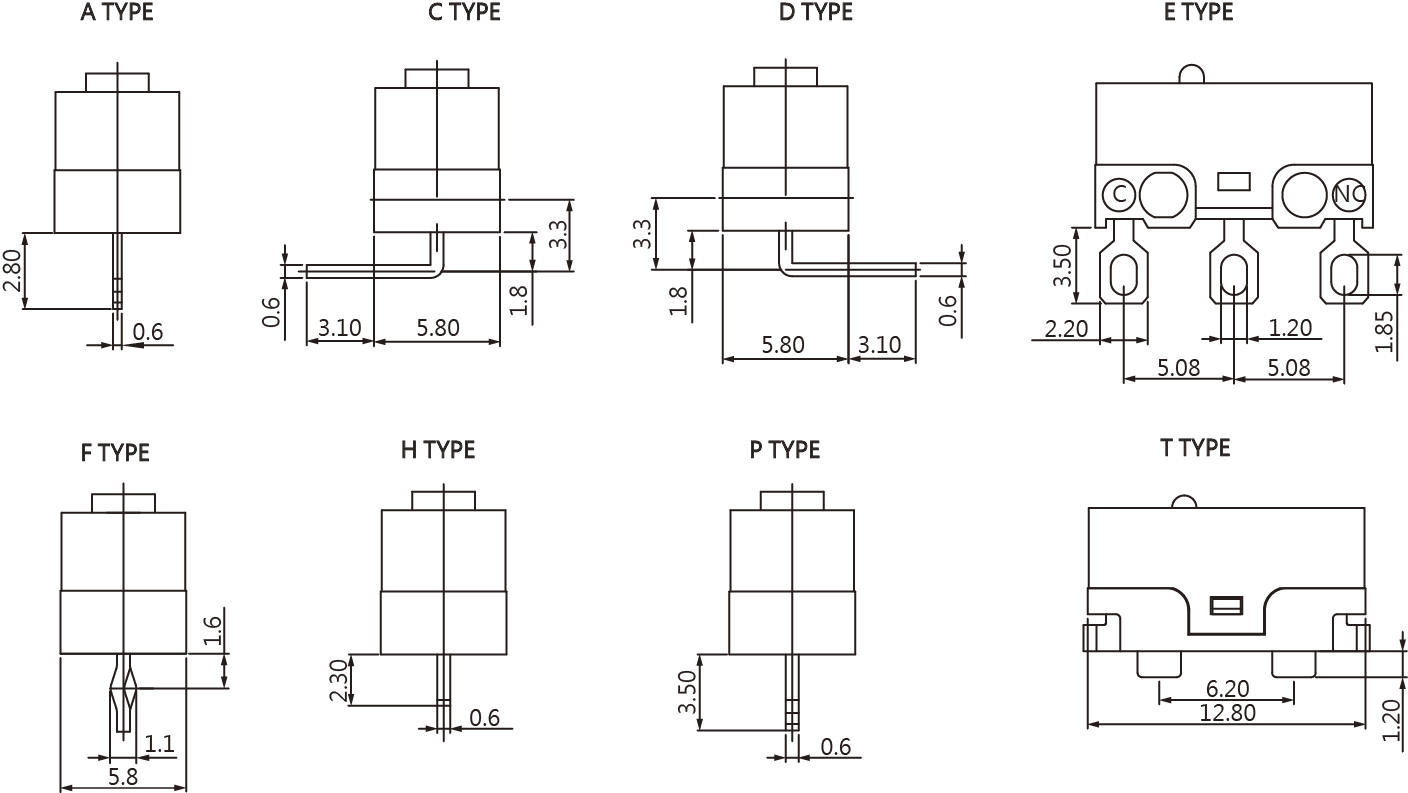

TERMINAL TYPES

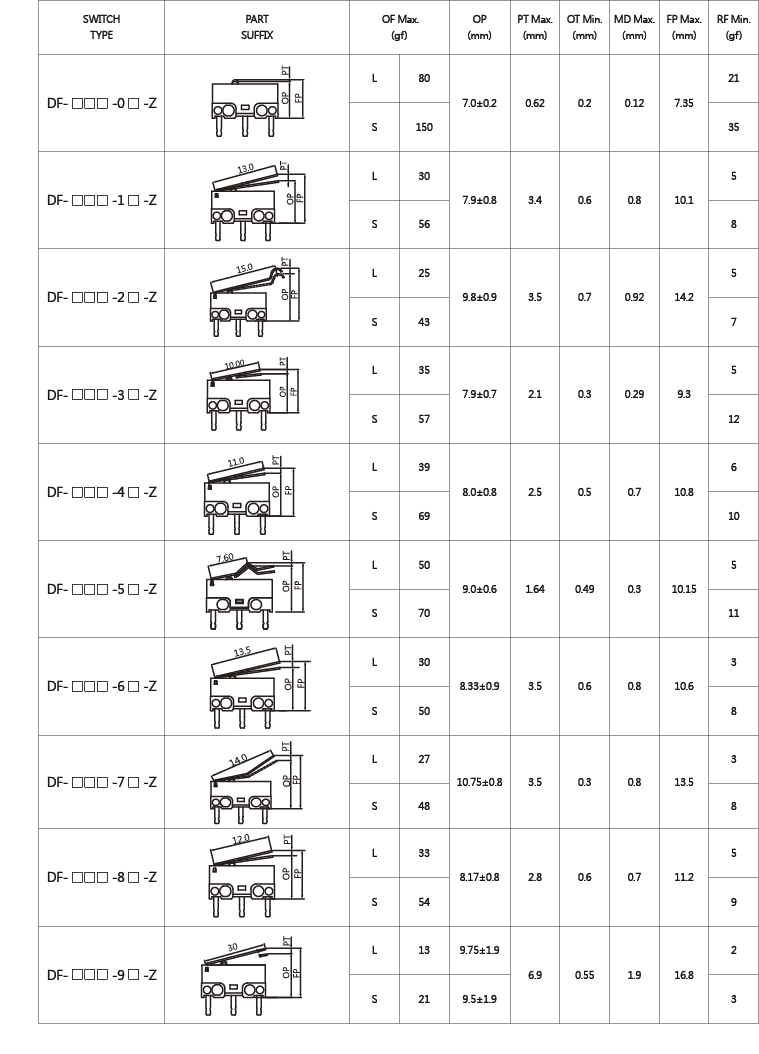

OPERATING CHARACTERISTICS
