产品型号：DA-P2L-0P-Z  DA-P2L-0T-Z

DA Series

SPECIFICATIONS
Operating frequency(electrical):
   120 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(Or at 250 VDC)
   100M Ω(Min)
Service life(electrical)
   Min. 5,000,000 Operations


RATING
0.1A 30VDC


APPLICATION
Mouse,Digital Pen

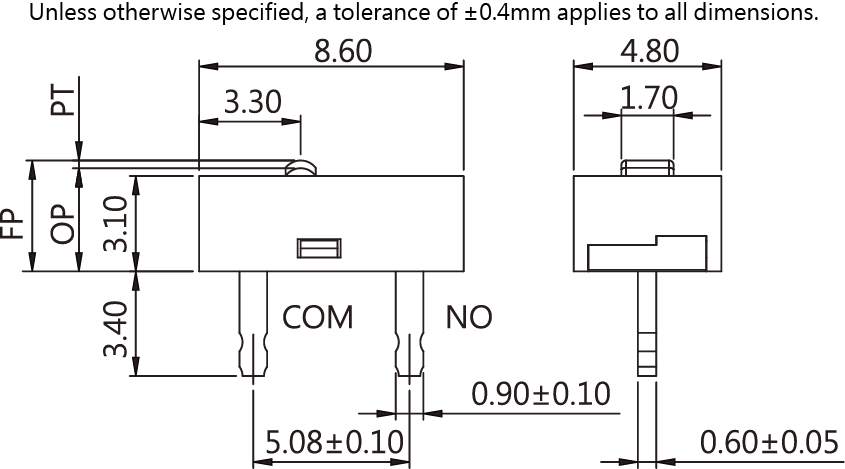

DIMENSIONS


CONTACT CONFIGURATION

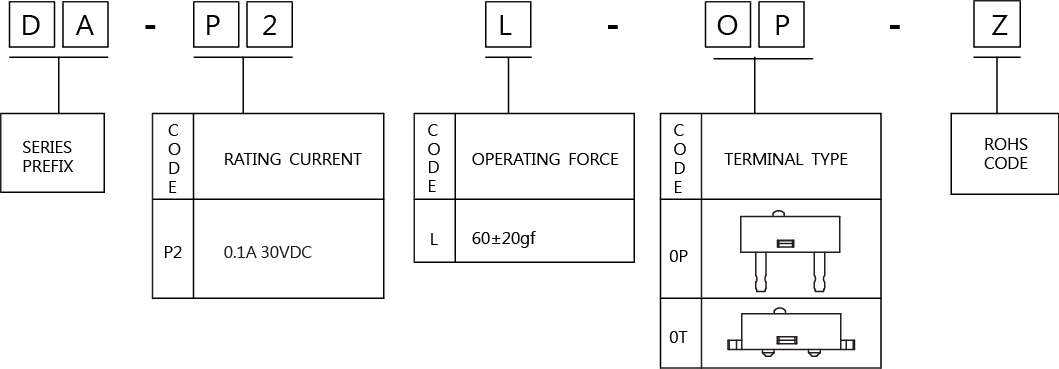

ORDER INFORMATION

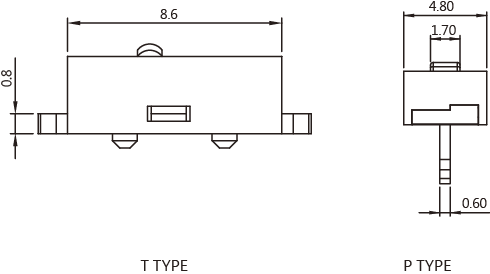

TERMINAL TYPES

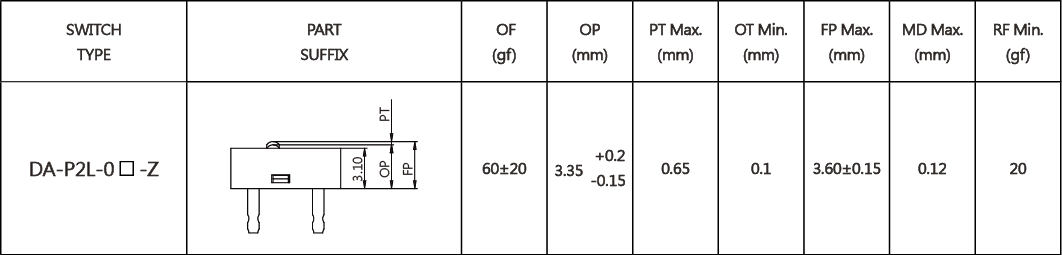

OPERATING CHARACTERISTICS
