TS-TP661L-1-4

TS-TP661L-1-4

详情

TS-TP661L-1-4 Series

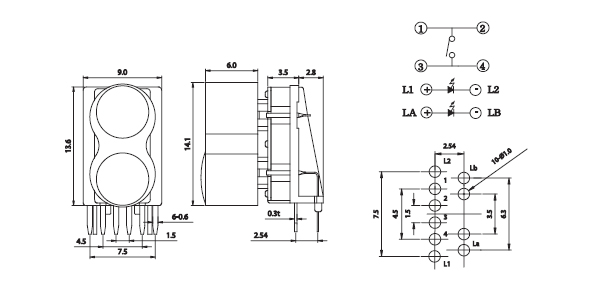

· 9 mm x 13.6 mm x 6.0 mm LED the switch
·160 +/- 50gf grams, the forces of selection
DESCRIPTIONS :
•Rating : 50mA 12VDC
•Insulation Resistance : 100M(Ohm) Min (at 250 VDC)
•Dielectric Strength : AC 250V (50/60 Hz for 1 minute)
•Contact Resistance : 100m(Ohm) Max. (lnitial)
•Electrically Life : 300,000 Cycles Min
•Ambient Temperature : -25 Degree C ~ +70 Degree C
•Operating Force : 160 +/- 50gf
TS-TP661L-1-4系列
·9 mm x 13.6 mm x 6.0 mm LED开关
·160+/-50gf克,选择力
描述:
•额定值:50mA 12Vdc
•绝缘电阻:100 m(ohm)min(250 Vdc时)
•介电强度:AC 250V(50/60 Hz,1分钟)
•接触电阻:最大100米(ohm)(初始)
•电寿命:至少300000次循环
•环境温度:-25°C~+70°C
•操作力:160+/-50gf
